10 Best Pump Start Relays for Reliable Performance and Efficiency

When choosing a pump start relay, consider the Briidea for 1-2 HP pumps, or the Rainbird PSR, which supports 24 VAC controllers. The PSR110220 is ideal for dual voltage and high capacity needs, while the 1522 offers reliability for 24V systems. For robustness, the 40Amp and 30A relays provide weather-resistant features. The Hunter PSR22 is compact and suitable for tight spaces. Evaluate your requirements, as each model has particular advantages worth exploring further.

Key Takeaways

• Consider the Briidea Pump Start Relay for efficient control of 1-2 HP sprinkler systems.
• The Rainbird PSR Relay is ideal for reliable irrigation management, supporting 40 AMP capacity for 24 VAC controllers.
• Use the PSR110220 for versatility, accommodating pumps up to 5 HP in both 110V and 220V configurations.
• Choose the Orbit 57009 for compatibility with 24 VAC controllers, managing 1 HP at 120 VAC and 2 HP at 230 VAC.
• The 30A Pump Start Relay with Surge Protector offers durability for outdoor use, suitable for pumps from 1-2.5 HP.

Briidea Pump Start Relay Sprinkler System 1-2 HP at 120/240V

Briidea Pump Start Relay Sprinkler System 1-2 HP at 120/240V

• ★Automatically activates pump for watering. It's imperative to include a relay that guarantees the pump can be activated whenever necessary
• ★Weather-resistant plastic case, a safe and secure connection inside which ensures long product life and deters tampering
• ★Quick lever-nut wire connectors make wiring quick and easy

View Lastest Price

The Briidea Pump Start Relay is an excellent choice for anyone needing an efficient and reliable option for sprinkler systems using 1-2 horsepower pumps at either 120 or 240 volts. This relay automatically activates your pump for watering, guaranteeing your system operates only when necessary. It’s compatible with all standard 24 VAC sprinkler systems, making it versatile. The weather-resistant plastic case enhances durability and safety, preventing damage from outdoor elements. You’ll find that installation is simple, thanks to the quick lever-nut wire connectors, which help speed up the wiring process. This relay ensures safe, secure connections for long-lasting performance.

Best For: Those seeking a dependable and efficient relay for sprinkler systems powered by 1-2 HP pumps operating at 120V or 240V.

Pros:

• Automatically activates pumps for efficient watering when necessary.
• Compatible with all standard 24 VAC sprinkler systems for versatile use.
• Weather-resistant plastic case ensures durability and safe outdoor operation.

Cons:

• Limited to 1-2 HP pumps, which may not suit larger systems.
• Requires a basic understanding of electrical wiring for installation.
• May not include comprehensive installation instructions, leading to potential confusion.

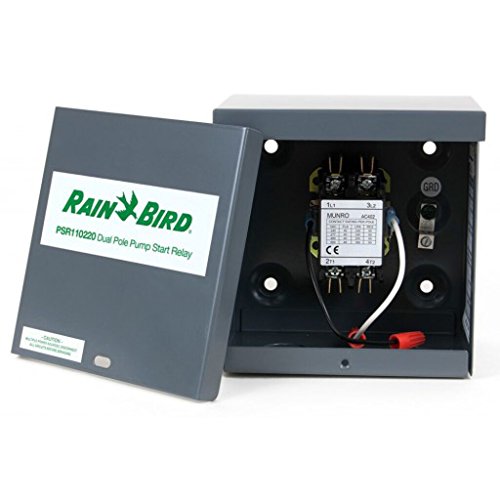

Rainbird PSR Pump Start, 110V-220V

Rainbird PSR Pump Start, 110V-220V

• 40 AMP UL listed relay - Quick connect terminals with wire nuts
• Grounding provision - Compatible with 24 VAC timed lawn controllers
• Grey "baked-on" powder coating, for long life in difficult environments

View Lastest Price

For homeowners and landscapers looking to control their irrigation systems efficiently, the Rainbird PSR Pump Start Relay offers a reliable solution with its 40 AMP capacity and compatibility with 24 VAC timed lawn controllers. This model features a compact, NEMA 3R weather-tight enclosure, protecting it from harsh conditions. Quick connect terminals simplify installation, while the grounding provision enhances safety. The durable grey baked-on powder coating guarantees longevity in challenging environments. Additionally, the relay is made from UL-listed components, signaling quality and reliability. It comes backed by a limited two-year warranty, providing peace of mind for your irrigation needs.

Best For: Homeowners and landscapers seeking an efficient control solution for their irrigation systems.

Pros:

• Compatible with 24 VAC timed lawn controllers for smooth integration.
• Compact NEMA 3R weather-tight enclosure provides protection from harsh weather conditions.
• Durable construction with grey baked-on powder coating ensures long-lasting performance.

Cons:

• Limited two-year warranty may be shorter compared to some competing products.
• Requires a basic understanding of electrical systems for installation.
• 40 AMP capacity may not be suitable for all irrigation setups, depending on the pump size.

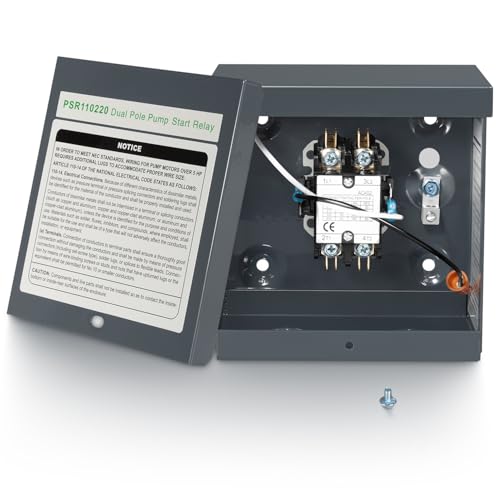

PSR110220 Dual Pole Pump Start Relay for Rain Bird Irrigation and Water Pumps

PSR110220 Dual Pole Pump Start Relay for Rain Bird Irrigation and Water Pumps, 110V/220V, 40A...

• Dual Voltage Compatibility - Supports 110V or 220V single-phase pumps, offering flexibility for various installation needs
• Wide Pump Range - Operates with pump motors from 3/4 HP to 5 HP, suitable for both small and large irrigation systems
• Heavy-Duty Performance - Equipped with a 40A high-capacity relay for reliable and safe operation under demanding conditions

View Lastest Price

Looking for a reliable relay to control your irrigation system? The PSR110220 Dual Pole Pump Start Relay is an excellent choice for Rain Bird irrigation and water pumps. It supports both 110V and 220V single-phase pumps, providing you flexibility for various needs. This relay operates efficiently with pump motors ranging from 3/4 HP to 5 HP, making it suitable for small and large irrigation systems alike. Its 40A high-capacity relay guarantees dependable performance in demanding conditions. The weatherproof metal housing features a durable powder-coated finish, while quick-connect terminals and grounding provision simplify installation, letting you set up quickly.

Best For: Landscape and irrigation professionals looking for a versatile relay solution for their pump systems.

Pros:

• Supports both 110V and 220V single-phase pumps, offering versatile installation options.
• Operates efficiently with a wide range of pump motors (3/4 HP to 5 HP), making it suitable for various irrigation system sizes.
• Features a durable weatherproof metal housing and quick-connect terminals for easy and reliable installation.

Cons:

• Limited to single-phase pumps, which may not suit all users’ needs.
• Installation may require basic electrical knowledge, which could be a barrier for some.
• Weatherproofing may not be sufficient for extreme environmental conditions in some regions.

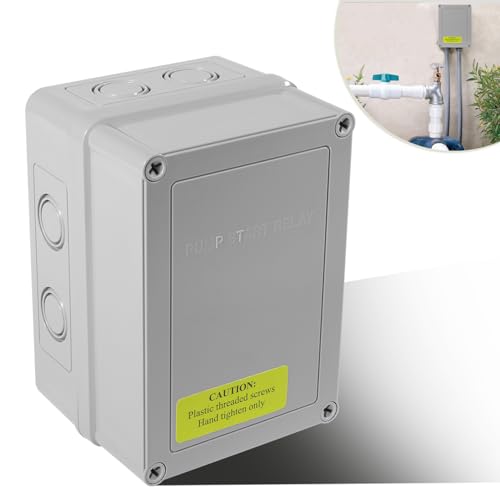

1522 Pump Start Relay for Irrigation Systems

1522 Pump Start Relay with Enclosure 3 HP / 110V / 220V 24V Coil for Irrigation Systems

• 【Specific Application】1522 relay is compatible with 24-volt sprinkler systems and has a weather-resistant plastic case for outdoor installation; Pump start relay...
• 【Excellent Function】1522 pump start relay is an electrical device that allows your irrigation timer to communicate with the pump; When you are using a pump to supply...
• 【Premium Material】3HP pump start relay is made of premium materials with durable and sturdy performance, reliable use and longer service life; Having 8 recessed...

View Lastest Price

Designed specifically for those with 24V sprinkler systems, the 1522 Pump Start Relay offers reliable operation with features that enhance irrigation efficiency. This relay operates at 3 HP for 110V or 220V applications, with a 24V coil compatible with pumps up to 7.5 HP. It replaces the K Rain 1522 model and guarantees effective communication between your irrigation timer and pump. Built from premium materials, its waterproof, corrosion-resistant, and UV-resistant enclosure protects against harsh weather, promoting durability. With eight recessed knock-outs for simple installation, it streamlines setup while providing a long-lasting, efficient performance for your outdoor watering needs.

Best For: Those looking for an efficient and reliable relay system to enhance their 24V irrigation sprinkler systems.

Pros:

• Durable Construction: Made from premium materials, ensuring long-lasting performance in outdoor conditions.
• Weather Resistant: The waterproof enclosure protects against corrosion and UV damage, ideal for various weather environments.
• Easy Installation: Features eight recessed knock-outs which simplify installation for both professionals and DIY enthusiasts.

Cons:

• Limited Compatibility: Specifically designed for 24V sprinkler systems, which may not suit all irrigation setups.
• Replacement Model: Only replaces the K Rain 1522 relay model, limiting options for current users of other models.
• Requires Professional Knowledge: Installation may require a basic understanding of electrical systems and irrigation setups, potentially intimidating for novice users.

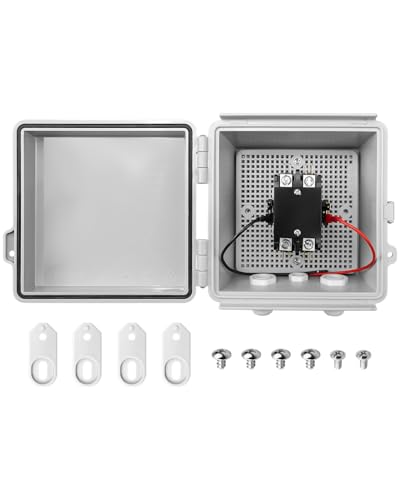

40Amp 24V Irrigation Pump Start Relay for Sprinkler System

Sale

40Amp 24V Irrigation Pump Start Relay Fit for Sprinkler Controller System, 2 Pole AC Contactor Pump...

• Wide Compatibility: Irrigation pump start relay module is compatible with 24V 5HP sprinkler control systems and can perfectly match your system
• Intelligent Control and Automation Functions: The relay module automatically controls the pump working cycle, accurately matches the irrigation needs, reduces water...
• Excellent Quality: Equipped with a waterproof shell and high-quality materials, with a sealing rubber ring, it effectively resists the common water mist erosion of the...

View Lastest Price

An effective choice for anyone managing a sprinkler system, the 40Amp 24V Irrigation Pump Start Relay delivers reliable control and operational efficiency. It supports 24V 5HP sprinkler control systems, accommodating pumps ranging from 2HP to 5HP. The relay features a durable waterproof box, ensuring protection against water mist erosion, prolonging its life. This device intelligently manages your pump’s working cycle, aligning perfectly with your irrigation needs and minimizing water waste. Installation is straightforward, thanks to detailed diagrams and equipped docking ports. By using high-quality materials, this relay guarantees long-term stability, making it a solid investment for any irrigation application.

Best For: Homeowners and agricultural operators seeking efficient control of their 2HP to 5HP sprinkler systems.

Pros:

• High compatibility with both 120V and 230V circuits for versatile pump usage.
• Intelligent control features minimize water waste and enhance irrigation efficiency.
• Durable waterproof design ensures longevity and protection against the elements.

Cons:

• Limited to 24V systems, which may not suit all pump models.
• Some users might find the initial setup complexity requiring careful wiring.
• The waterproof box may add to the overall size, making placement more challenging in tight spaces.

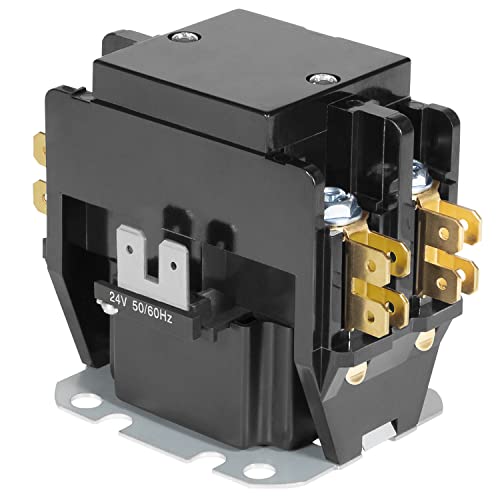

1522 Pump Start Relay Contactor for K-Rain Lawn Sprinkler System

1522 Pump Start Relay Contactor 24V Fit for K-Rain Coil Lawn Sprinkler Irrigation System Watering...

• ✅【Great Fitment】: Direct replacement for the contactor of K-Rain model 1522 pump start relay. Suitable for use on a circuit capable of delivering not more than...
• ✅【Efficient Control】: Used to control the operation of the irrigation pumps, starting and stopping at appropriate times according to the programmed schedule set by...
• ✅【Double Pole Single Throw】: 240 Volts maximum when protected by a fuse or circuit breaker rated at 100 amps. Switch contacts are electrically rated up to...

View Lastest Price

For homeowners seeking an efficient solution for their irrigation systems, the 1522 Pump Start Relay Contactor is a top choice for K-Rain lawn sprinkler systems. This 24V contactor directly replaces the K-Rain model 1522 and handles circuits delivering up to 5000 RMS symmetrical amperes. It controls irrigation pumps, starting and stopping them as per programmed schedules, ensuring efficient operation. With a Double Pole Single Throw design, it operates at a maximum voltage of 240 Volts when protected by a 100-amp fuse. Constructed from durable ABS plastic and brass, it resists moisture and heat, ensuring longevity and reliability.

Best For: Homeowners looking for a reliable and efficient relay contactor for their K-Rain lawn sprinkler irrigation systems.

Pros:

• Easy installation: Plug and play design allows for quick and simple replacement with minimal professional knowledge required.
• High durability: Made from heavy-duty ABS plastic and brass, offering resistance to moisture, heat, and environmental factors.
• Strong performance: Controls irrigation pumps effectively, ensuring optimal operation with a double pole single throw configuration.

Cons:

• Voltage limitations: Maximum operational voltage of 240 Volts may limit usage in high-voltage applications.
• Programmed schedules required: Users need to have a programmed schedule in place for efficient pump operation; otherwise, manual intervention may be necessary.
• Not suitable for all systems: Specifically designed for K-Rain models, it may not be compatible with other brands or models of irrigation systems.

Orbit 57009 2 HP Irrigation Pump Start Relay for Sprinkler Controllers

Sale

Orbit 57009 2 HP Irrigation Pump Start Relay for Sprinkler Controllers

• For automatically synchronizing an irrigation pump and sprinkler controller
• Durable ABS enclosure stands up to the elements and ensures long life
• Controls 120 VAC pumps up to 1HP and 230 VAC pumps up to 2HP

View Lastest Price

The Orbit 57009 2 HP Irrigation Pump Start Relay is an excellent choice for homeowners looking to enhance their irrigation systems. This reliable relay syncs your irrigation pump with sprinkler controllers, ensuring efficient water distribution. It features a rugged ABS enclosure, which withstands various weather conditions, promoting a long lifespan. This relay controls 120 VAC pumps up to 1 HP and 230 VAC pumps up to 2 HP, providing flexibility for different pump setups. It’s compatible with 24 VAC irrigation controllers from top brands like Orbit and Hydro-Rain, allowing easy integration into your existing system for improved performance and reliability.

Best For: Homeowners seeking to improve the efficiency and reliability of their irrigation systems through automatic pump control.

Pros:

• Durable ABS enclosure ensures a long lifespan and withstands various environmental conditions.
• Versatile compatibility with 24 VAC irrigation controllers from major brands allows for easy integration into existing systems.
• Controls both 120 VAC and 230 VAC pumps, providing flexibility for different pump setups.

Cons:

• Installation may require professional assistance, which could add to overall costs for some users.
• Limited to specific voltage and horsepower ratings, potentially excluding some pump types.
• May require additional components for full system integration, depending on existing irrigation setups.

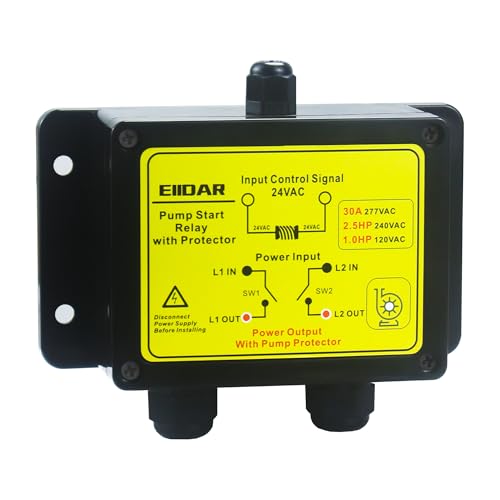

30A Pump Start Relay with Surge Protector

EIIDAR 30A Pump Start Relay with Surge Protector 1-2.5HP 120V/240V Sprinkler System

• Industrial 30A Load Capacity：Engineered for 1-2.5HP pumps (120V/240V), built-in overload protection, 3X longer lifespan than standard relays.
• Surge Protection‌：Shields against lightning strikes and power surges to prevent pump damage
• IP68 Waterproof Certified：Fully sealed construction passes rigorous testing for outdoor reliability.

View Lastest Price

Recognizing the importance of reliable performance in irrigation systems, this 30A Pump Start Relay with Surge Protector stands out for homeowners and garden enthusiasts alike. Designed for 1 to 2.5 HP pumps operating at 120V or 240V, it provides industrial load capacity with built-in overload protection. Durability is key, as this relay is engineered to last three times longer than standard models, boasting an IP68 Waterproof Certification for outdoor use. Additionally, the surge protection feature shields against lightning strikes and power surges, preventing costly pump damage. Installing it is easy, taking just three minutes with no tools required.

Best For: Homeowners and garden enthusiasts seeking a reliable and durable solution for managing their irrigation systems.

Pros:

• High durability with a lifespan three times longer than standard relays.
• Easy installation with plug-and-play setup that requires no tools.
• Surge protection features that prevent pump damage from lightning strikes and power surges.

Cons:

• Limited compatibility with only specific pump power ratings (1-2.5 HP).
• Outdoor installation may require additional weatherproofing in extreme conditions despite IP68 rating.
• Initial cost may be higher compared to standard pump relays without surge protection.

Hunter Sprinkler PSR22 Pump Start Relay

Hunter Sprinkler PSR22 Double Pole or Single Throw Pump Start Relay for Up to 5 HP

• Flying wire leads allow for effortless 24V connections
• For 120 VAC pumps up to 2 hip or 230 VAC pumps up to 5 hip
• Available in a choice of three models to accommodate a variety of power sources and landscape needs

View Lastest Price

If you’re looking for a reliable pump start relay that can handle both residential and commercial applications, the Hunter Sprinkler PSR22 Pump Start Relay stands out as an excellent choice. This relay supports pumps up to 2 HP at 120 VAC and up to 5 HP at 230 VAC. With its double pole or single throw functionality, it offers versatility across different setups. The package measures 22.606 cm in length, 11.684 cm in height, and 17.526 cm in width, making it compact yet efficient. Plus, flying wire leads make 24V connections easy. Choose from three models to meet your specific landscaping needs.

Best For: Homeowners and landscaping professionals looking for a reliable pump start relay for both small and large irrigation systems.

Pros:

• Versatile Operation: Supports a wide range of pumps with options for both 120 VAC (up to 2 HP) and 230 VAC (up to 5 HP).
• Compact Design: Dimensions allow for easy installation in various locations without taking up too much space.
• Easy Connections: Flying wire leads simplify the process of making 24V connections, making installation straightforward.

Cons:

• Limited to Specific Power Ratings: Not suitable for pumps exceeding the specified horsepower limits at either voltage.
• Model Selection Required: Users may need to choose from three models, which could be confusing for some customers.
• Additional Installation Knowledge May Be Needed: May require basic electrical knowledge for proper installation and setup.

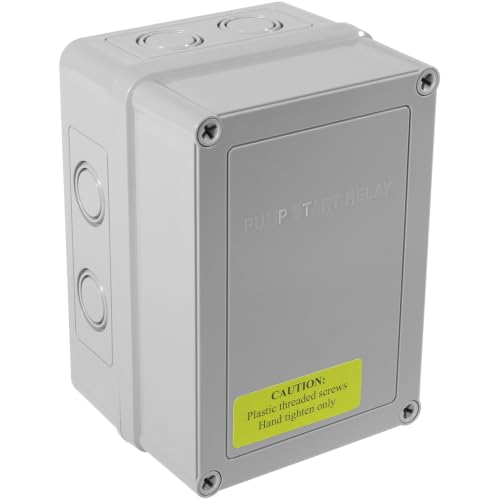

1522 Pump Start Relay Contactor for K-Rain Lawn Sprinkler System

1522 Pump Start Relay Contactor Replacement for K-Rain 24V Coil Lawn Sprinkler Irrigation System...

• Compatibility: The replacement part is specifically designed for compatible with K-Rain 24V relay coil systems, which is used in sprinkler irrigation systems. This low...
• Function: The Pump Start contactor is responsible for activating and deactivating the pump in response to signals from the irrigation controller. It allows the pump to...
• Durable Material: The contactor is built to withstand the outdoor conditions typically encountered in lawn sprinkler systems. It is made from durable ABS plastic and...

View Lastest Price

For homeowners seeking an efficient solution for their K-Rain Lawn Sprinkler System, the 1522 Pump Start Relay Contactor offers a reliable and practical choice. This contactor works seamlessly with K-Rain’s 24V coil systems, activating and deactivating your pump based on your irrigation controller’s signals. Its durable construction combines ABS plastic and brass, effectively resisting moisture and heat in outdoor environments. Installation is simple; you can easily replace the existing contactor without needing advanced technical skills. By choosing to replace just the contactor, you’re saving costs while restoring reliable performance to your sprinkler irrigation system.

Best For: Homeowners looking for a cost-effective and easy-to-install solution to enhance the efficiency of their K-Rain Lawn Sprinkler System.

Pros:

• Durable construction of ABS plastic and brass ensures long-lasting reliability in outdoor conditions.
• Simple plug-and-play installation allows quick replacement without advanced technical knowledge.
• Cost-effective option to replace only the faulty contactor instead of the entire irrigation system.

Cons:

• Compatibility limited to K-Rain 24V coil systems, reducing versatility for users with other brands.
• Potential need for regular maintenance depending on environmental conditions, which may lead to additional costs.
• May not address other underlying issues in the irrigation system that could affect overall performance.

Factors to Consider When Choosing a Pump Start Relay

When choosing a pump start relay, you need to take into account several important factors. Check the power compatibility options to guarantee it matches your pump’s requirements, typically rated between 120 to 240 volts. Additionally, assess the durability and materials used, as well as the installation complexity and available control features, to make an informed decision.

Power Compatibility Options

Choosing the right pump start relay involves several key factors, especially regarding power compatibility. First, check the voltage; typical options are 120V or 240V circuits. Next, verify the horsepower rating aligns with your pump’s needs, ranging from 1-2 HP for residential systems to 5 HP for larger setups. It’s also important to confirm that the relay supports necessary electrical specifications, such as amperage, generally 30A or 40A, to prevent overload. Additionally, consider the coil voltage, usually 24V, for compatibility with standard irrigation controllers. Finally, while evaluating relays, review their construction and weather resistance, as these features are essential for outdoor installations to guarantee reliable performance over time.

Durability and Materials

Selecting a durable pump start relay is vital for ensuring long-lasting performance in challenging environments. Look for relays made from high-quality materials, like heavy-duty ABS plastic and brass, which resist moisture and heat. Weatherproof metal housings with a powder-coated finish can greatly enhance longevity in harsh outdoor conditions. Additionally, choose relays featuring sealing rubber rings and waterproof enclosures to guard against water mist and environmental erosion. This protection is essential for maintaining the stability of electrical components over time. Furthermore, using UL-listed components indicates reliable quality and safety standards in diverse settings. Finally, a relay’s design should include quick-connect terminals and docking ports, facilitating efficient installation while contributing to overall durability and functionality.

Installation Complexity

After ensuring durability and reliability in a pump start relay, it’s important to think about installation complexity. The complexity can vary based on whether you have pre-installed wiring and your familiarity with electrical systems. Some relays have plug-and-play designs, which simplify installation, allowing quick replacements without extensive technical skills. Look for quick-connect terminals with wire nuts, as these can speed up wiring and lower mistakes during setup, especially for novice users. Weather-resistant enclosures can enhance durability, while clear wiring diagrams guide you through the installation process. Additionally, features like grounding provisions make connections safer and more secure, ensuring compliance with safety standards. Keeping these factors in mind can lead to a more straightforward installation experience.

Control Features Available

When evaluating pump start relays, consider the control features that can enhance irrigation efficiency. Look for relays that automatically activate pumps based on pre-set irrigation schedules or timer signals. This guarantees efficient water usage, minimizing waste. Intelligent control features can adapt to your specific irrigation needs, matching the pump’s operation with the landscape’s requirements. Make certain the model you choose is compatible with standard voltage systems, operating efficiently at both 120V and 240V. Additionally, check for surge protection features to safeguard your pump against power surges that may cause damage. Finally, evaluate installation ease; relays that come with plug-and-play functionality or clear wiring diagrams simplify the setup process, making it quicker and more accessible.

Electrical Specifications

Understanding electrical specifications is essential for choosing the right pump start relay for your system. Start by confirming voltage compatibility; most relays support either 120V or 240V, depending on your pump’s requirements. Next, evaluate the amperage rating—look for relays with 30A to 40A to handle higher demand pumps effectively. You’ll also want quick connect terminals and grounding provisions, as these features simplify installation while enhancing safety. Additionally, check if the relay accommodates multiple HP ratings, which increases its versatility for different pump sizes. Finally, verify the relay meets UL listing standards, as this provides assurance of quality and safety in electrical performance. Taking these factors into account will help you select a reliable and efficient pump start relay.

Weather Resistance Ratings

Choosing the right pump start relay isn’t just about electrical specifications; you also need to factor in weather resistance ratings. Look for relays with waterproof enclosures that meet IP68 standards, as they can endure prolonged exposure to water. Materials matter too; select corrosion-resistant options like UV-resistant plastics or powder-coated metals to guarantee durability in harsh conditions. Also, consider relays equipped with sealing rubber rings or moisture barriers, which can protect against water mist and erosion over time. A weather-tight enclosure and robust construction can enhance the relay’s operational life and minimize maintenance for your irrigation systems. By prioritizing these weather resistance features, you’ll increase the reliability and efficiency of your pump start relay.

Warranty and Support

How can you guarantee that your pump start relay will stand the test of time? First, examine the warranty period; a longer warranty often reflects the manufacturer’s confidence in the relay’s durability and performance. Look for limited warranties that cover both parts and labor to minimize potential repair costs if issues arise. It’s also beneficial to check if the manufacturer provides customer support options for troubleshooting and installation, as this can greatly enhance your experience. Additionally, review user feedback on warranty claims and customer service responsiveness, which will inform you how the manufacturer handles support issues. Finally, verify they offer a satisfaction guarantee, allowing you to return or exchange the product if it doesn’t meet your expectations.

Frequently Asked Questions

What Is the Typical Lifespan of a Pump Start Relay?

A typical pump start relay can last between 5 to 10 years, depending on usage and environmental conditions. Factors affecting longevity include humidity levels, temperature ranges, and electrical loads. Proper maintenance, like regular inspections and clean connections, extends its lifespan. Keep an eye on any signs of wear, such as unusual clicking noises or erratic operation. By being proactive, you can guarantee reliable performance from your pump start relay throughout its service life.

Can a Pump Start Relay Be Used With Any Pump Type?

You can’t use a pump start relay with just any pump type. Generally, these relays work best with submersible or centrifugal pumps, designed for rated voltages of 120V or 240V. Make sure that the pump’s amperage doesn’t exceed the relay’s rating, usually around 15 to 30 amps. Always check compatibility in the product specifications, as using the wrong relay could lead to malfunctions or damage, affecting overall performance and lifespan.

How Do I Troubleshoot a Faulty Pump Start Relay?

To troubleshoot a faulty pump start relay, first, check for visible damage or corrosion on terminals. Disconnect power to guarantee safety, then test voltage across the relay with a multimeter; it should read 120 volts during activation. If it’s not functioning correctly, inspect associated wiring for breaks or loose connections. Replace the relay if you identify consistent failure. Regularly inspect connections every six months to maintain peak performance.

Is Professional Installation Necessary for Pump Start Relays?

While professional installation isn’t strictly necessary for pump start relays, it’s strongly recommended, especially if you’re unfamiliar with electrical systems. Proper installation guarantees efficiency, minimizing risks like short circuits or improper wiring. Generally, the process requires following detailed wiring diagrams, connecting a 240V power supply, and mounting the relay securely. If you decide to DIY, make sure to use appropriate tools and adhere to local electrical codes for safety and compliance.

What Safety Features Should I Look for in a Pump Start Relay?

When selecting a pump start relay, look for safety features like overload protection, which prevents damage due to excessive current. A relay with a manual reset button enhances user safety, allowing control during faults. Verify it has a weatherproof housing, rated for outdoor use, typically IP65 or higher. Additionally, check for short circuit protection and surge protection capabilities to safeguard both the relay and connected equipment, guaranteeing reliable and safe operation.
